SKU: 12670

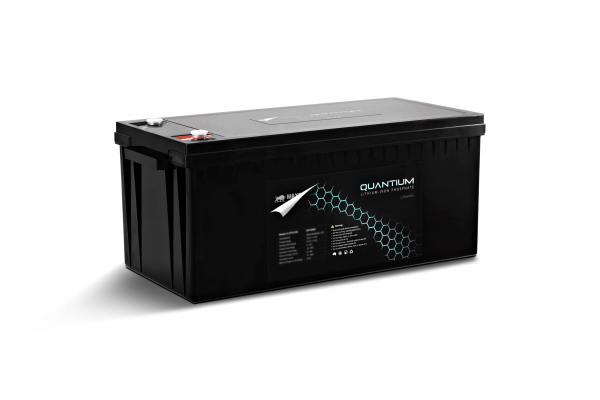

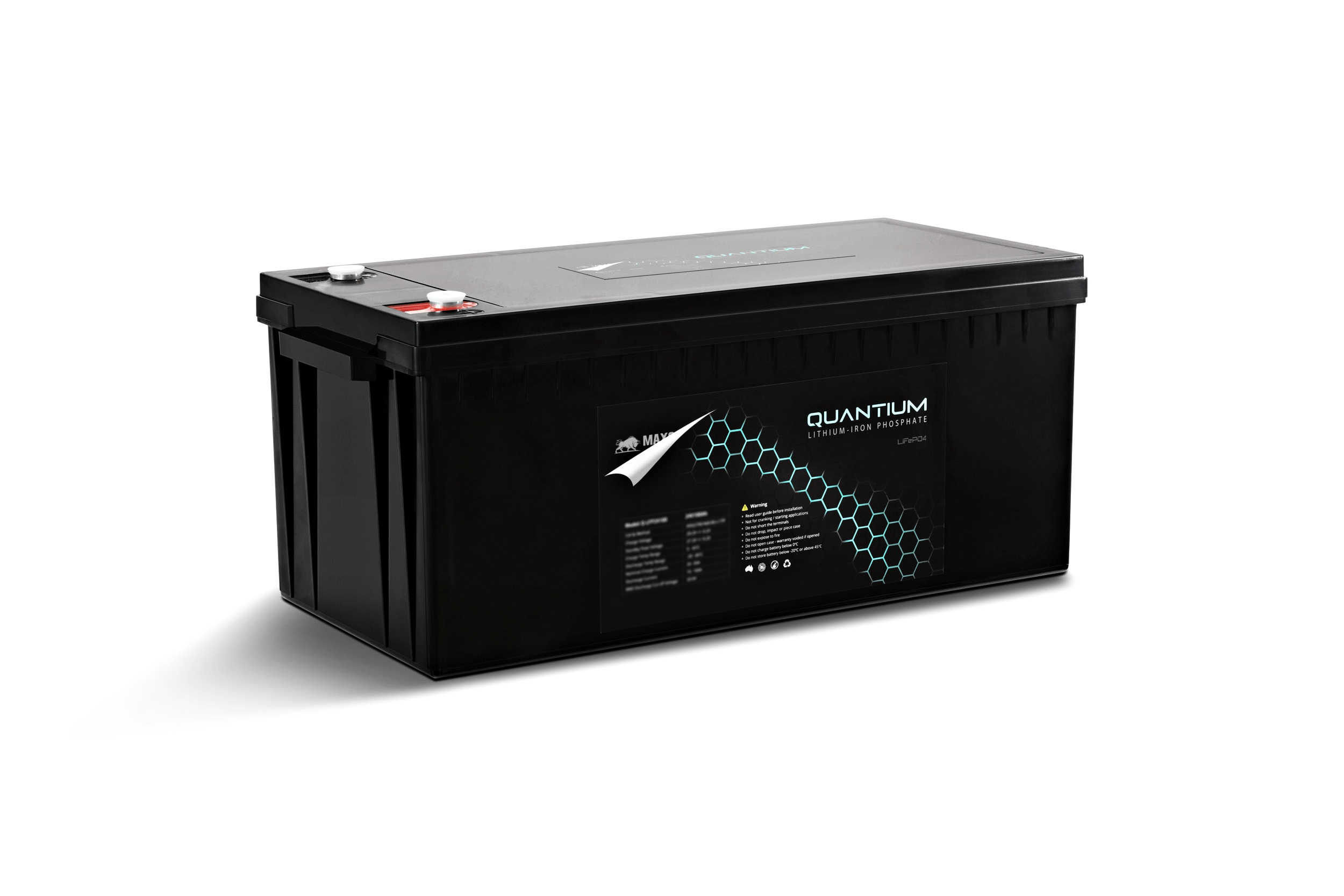

Quantium™ 24V 100Ah Lithium Iron Battery Q-LBS24100

$920.00

In Stock Please note that products available In Stock are generally available within 1 business day for pick-up or delivery.

Click here for Shipping Options

  • Free Delivery in Brisbane

    & surrounding areas
  • Proudly Australian

    Easy to claim
  • Manufacturer's Warranty

    Owned and Operated
Categories: , , , Tag: Brand:

Description

Quantium™ Lithium Iron Phosphate (LiFePO4) Battery 25.6V 100Ah

Quantium™ Deep Cycle Lithium Iron Phosphate (LiFeP04) batteries are safe, high-quality, energy-efficient, slimline designed to replace traditional Lead Acid, AGM, and GEL batteries. They feature an integrated quality smart battery management system (BMS) to ensure the safe operation and protection of the battery by monitoring and managing the charging and discharging process.

These slimline LiFePo4 batteries are designed to save space when replacing lead-acid batteries for Caravans, Motorhomes, Campers, 4×4, Water Craft, and Trolling motors and are perfect for storing solar energy.

Many of the cheap lithiums flooding the market today use low-quality cells, which results in not only poor performance but, worst of all, poor safety. Quantium™ batteries are made with the best materials by reputable manufacturers; this shows in the quality of their construction and high continuous power output.



Quantium™ LiFePo4 12.8V 100Ah Deep Cycle Lithium Iron Phosphate batteries come with a genuine three-year replacement warranty by Maxon Batteries, an Australian family-owned business, which this also backed locally by Battery Central Brisbane.

Unlike some online stores that pop up only to shut down when you need them and reopen under a different name.







FEATURES



High cycle life  5000 @ 50% DOD



More economical than AGM / Gel batteries



Quality Prismatic Cells



Safest lithium chemistry with high energy



In built-in over-charge and over-discharge protection

Internal cell balancing

Can be connected in series to 51.2V

Can be connected in parallel to up to 4 batteries

Lightweight

36-month warranty back by local Australian-owned and operated business





SPECIFICATIONS



Model:   Q-LBS24100

Usage: Deep Cycle

Type:   LifePO4 Prismatic Cells

Nominal Voltage:   25.6V

Capacity (Usable):   100Ah @ O.2C

Energy:   2560Wh

Cycle Life:   2,000 cycles @ 100% DOD

Cycle Life:   5,000 cycles @ 50% DOD

Self-Discharge:   >3% Per Month 25ºC

Charge Voltage: 14.6V +/- 0.2V

Standby / Float Voltage: 13.6V +/- 0.2V

Charge Mode:   CC/CV Constant Current/Constant Voltage

Max Charge Current:   75A

Max Continuous Discharge Current:   150A

Max Pulse Discharge Current:   200S (<3sec)

BMS Discharge Cut off Voltage:   10.0V

Charge Temp Range:   0 – 45ºC

Discharge Temp Range:   -20ºC – 60ºC

Storage Temp Range:   -20ºC – 45ºC

Cell & Method:   Prismatic 4S 2P

Casing:   ABS

CE Certified

UN38.3 Certified

RoHS Certified

UL Certified

ISO 9001 Certified

ISO 1200 Certified

Dimensions L525xW240xH220 TH245 mm

Product Weight:   kg

Terminal:   M8

Warranty Private: 36 Months

Warranty Commerical: 24 Months



Warranty backed by local Australian-owned and operated business

Deep Cycle only, not to be used for cranking or under the bonnet
