Description
SolarKits 1200W Epever Off-Grid Solar Charging Kit – CK1200E24

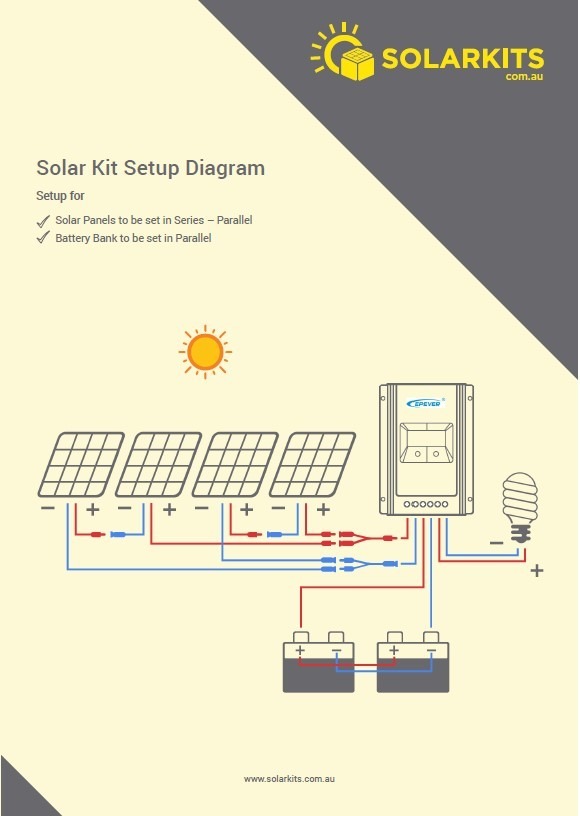

Our small 1200W off-grid solar charging systems come with 4 x 300W panels, controllers and wiring to the battery.
This solar charging kit is a stand-alone solar charger for 24V Lithium or AGM off-grid battery banks ranging from 200Ah to 400Ah. It can be modified to suit 12V battery banks, but we recommend running it at 24V.
Ideally suited to run 12V or 24V appliances for Caravans, RVs, Sheds, Tiny Houses, and Holiday Huts that consume under 3.2 kWh daily.
An Inverter can be added to run 240V appliances if required (Listed below)

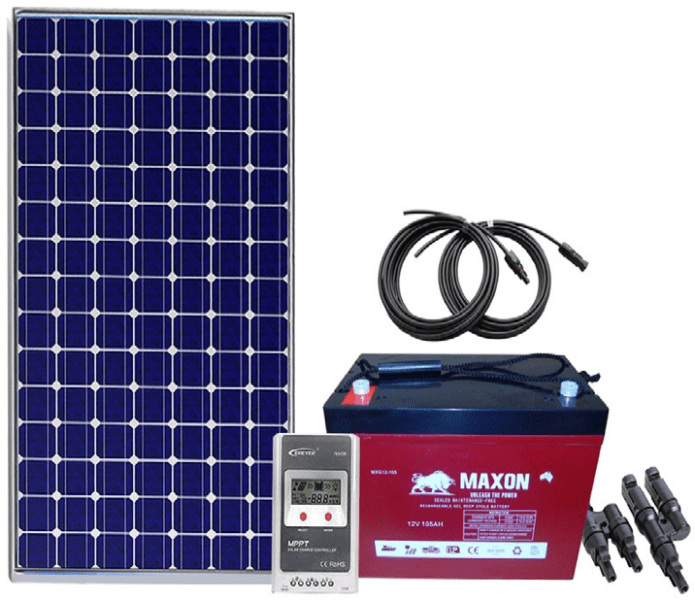

KIT INCLUDES
4 x 300W Solar Panels (Sizes & brands may vary due to stock)
1 x Epever MPPT 40A Solar Controller XTRA4210AN-XDS2
1 x Epever Temperature Sensor Cable
1 x SolarKits MC4 Connectors (Part of Cable)
1 x Two into One MC4 Branch Connectors
1 x 10 Mtr Cable 6mm Twin Core Cable inc MC4 (Solar Panels to Controller)
1 x 1.2 Mtr Black 6 B&S Negative Cable inc 8mm eyelet (Controller to Batteries)
1 x 1.2 Mtr Red 6 B&S Positive Cable inc 8mm eyelet (Controller to Batteries)
FUSES AND CIRCUIT BREAKERS KIT – FK4 $165 (Not Included in Charging Kit)
1 x DC 30A Twin Pole Circuit Breaker and Din Housing (Solar)
1 x DC 50A Resettable Circuit Breaker (Battery)
2 x 6mm eyelets (Circuit Breaker Terminal)
+ 2 x MC4 15A Inline Fuses (Solar Panel)
* Specification may change without notice
COMPATIBLE WITH THE FOLLOWING BATTERY OPTIONS
Maxon MXEG12-240 Endurance AGM Batteries x 2 $1044
Battery Bank: 5.76kWh (24V 240Ah)
Daily Usage: 1.2kWh
Autonomy: 3 Days
Maxon MXEG12-300 Endurance AGM Batteries x 2 $1180
Battery Bank: 7.2kWh (24V 300Ah)
Daily Usage: 1.5kWh
Autonomy: 3 Days
Maxon MEVG-J305 Carbon Gel Batteries x 4 $1699
Battery Bank: 7.9kWh (24V 330Ah)
Daily Usage: 1.6kWh
Autonomy: 3 Days
Maxon MEVG-L16 Carbon Gel Batteries x 4 $2070
Battery Bank: 10.1kWh (24V 420Ah)
Daily Usage: 2.0kWh
Autonomy: 3 Days
Quantium Q-LFP24100 Lithium Iron Battery x 2 $2500
Battery Bank: 4.8kWh (24V 200Ah)
Daily Usage: 1.6kWh
Autonomy: 3 Days
Quantium Q-LFP24100 Lithium Iron Battery x 3 $3750
Battery Bank: 7.2kWh (24V 300Ah)
Daily Usage: 2.4kWh
Autonomy: 3 Days
Quantium Q-LFP24100 Lithium Iron Battery x 4 $5000
Battery Bank: 9.6kWh (24V 400Ah)
Daily Usage: 3.2kWh
Autonomy: 3 Days
EPEVER INVERTERS
IP1500-12L iPower Plus 12V 1500W $465
IP2000-24L iPower Plus 24V 2000W $587
IP350-12/24 iPower 350W $135
IP500-12/24 iPower 12V 500W $178
IP1000-12/24 iPower 12V 1000W $287
IP1500-12/24 iPower 12V 1500W $319
