Description
This 130W D.I.Y. Solar Charging Kit includes a highly efficient mono panel that capable of producing 7A to charge any 12V battery bank.
This economical kit comes complete with flat surface mounting bracket, controller & all wiring.
Free friendly telephone or instore advise by local Australian business.
FEATURES:
Easy D.I.Y. to Instal
Lightweight, low profile panel design
Free support telephone, email or instore advise
Suitable for 12V lead-acid, AGM and Gel batteries
All products warranties backed by local Australian business.

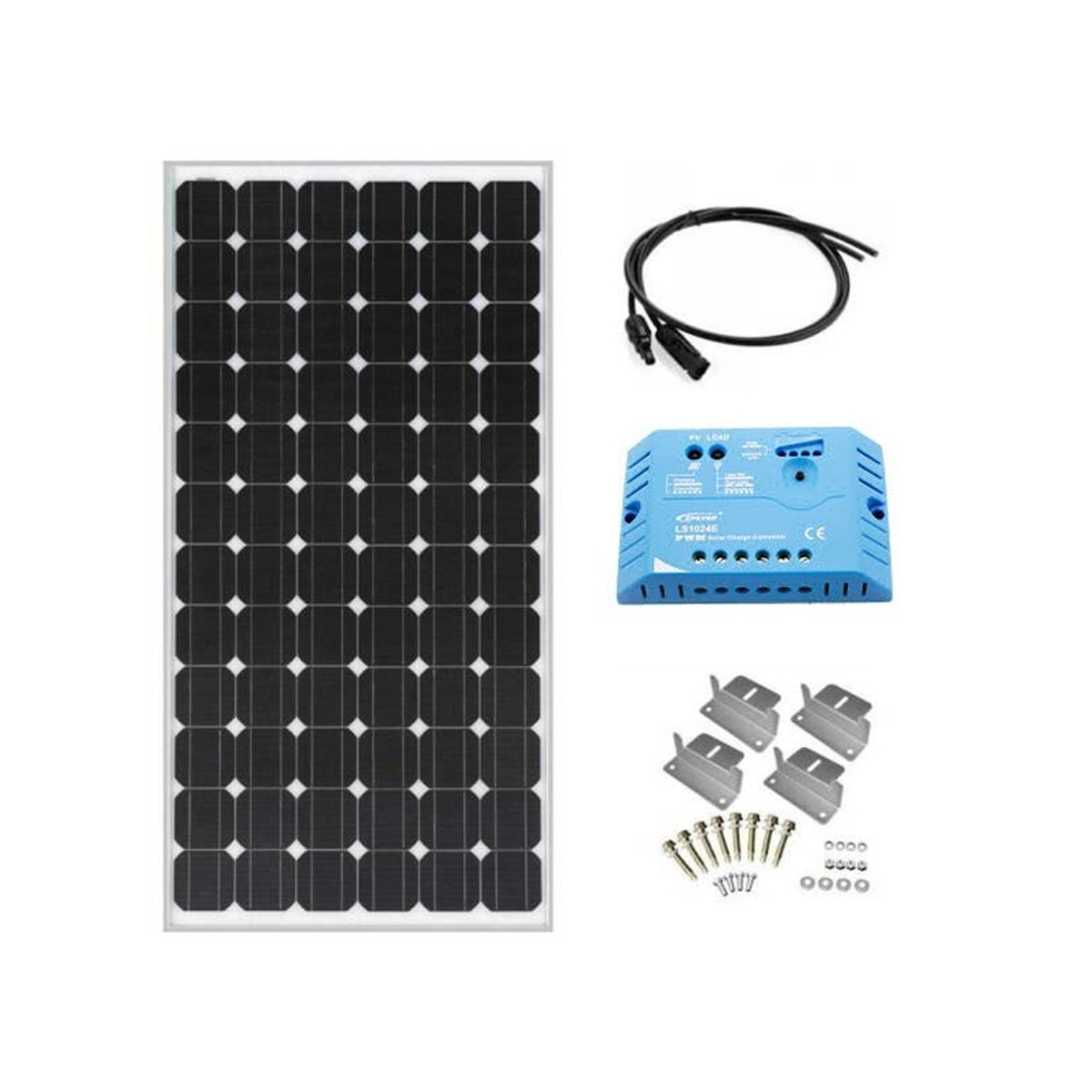

What’s In The Kit:
1 x SK130M6-36 SolarKits 130W Mono Solar Panel (60 mth warranty)
1 x Epever LS1024E 10A PWM Controler (24 mth warranty)
1 x SolarKits Alloy Bracket Kit
1 x 2.5 mtr solar cable with MC4 fittings
APPLICATION:
Recreational Vehicles 4WD
Caravans
Camping
Shed
Off-grid/mobile solar systems
PANEL SPECIFICATIONS:
Part Number: SK130M6-36
Maximum Power (Pmax): 130W
Power Tolerance: +0 -3%
Max Power Voltage (Vmp): 18.1V
Max Current (Imp): 7.18A
Open Circuit Voltage (Voc) 22.1V
Short Circuit Current (Isc) 6.61A
Weight: 9.6 kg
Dimensions: 1200 x 670 x 30mm
