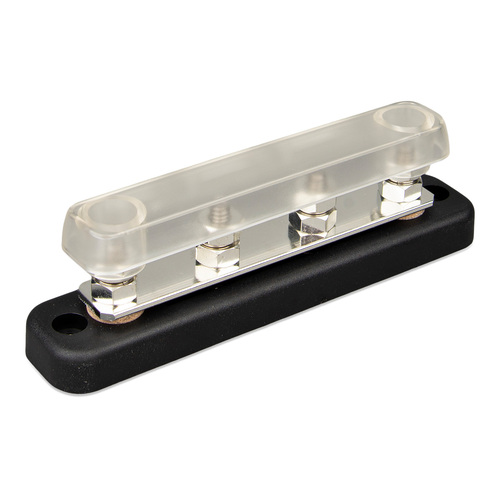

| Busbar 150 A with cover | |
| Max. current | 150 A |
| Max. Voltage | 70 VDC |
| Terminal diameter | ¼ inch / 6.35 mm |
| Terminal height | 0.67 inch / 17 mm |
| Terminal material | Stainless steel |
| Hex nut material | Tin-plated copper |
| Recommended torque | 60 lbf·inch / 7 N·m |
| Busbar strip material | Tin-plated copper (1.4 x 18 mm) |
| Base material | ABS, black, UL 94 V-0 |
| Cover material | Clear Polycarbonate, UL 94 HB |
| Weight, 4 terminals | 0.4 lb / 0.2 kg |
| Dimensions (hxwxd) (with cover) | 1.8 x 6.0 x 1.25 inch 45 x 152.4 x 31.8 mm |
